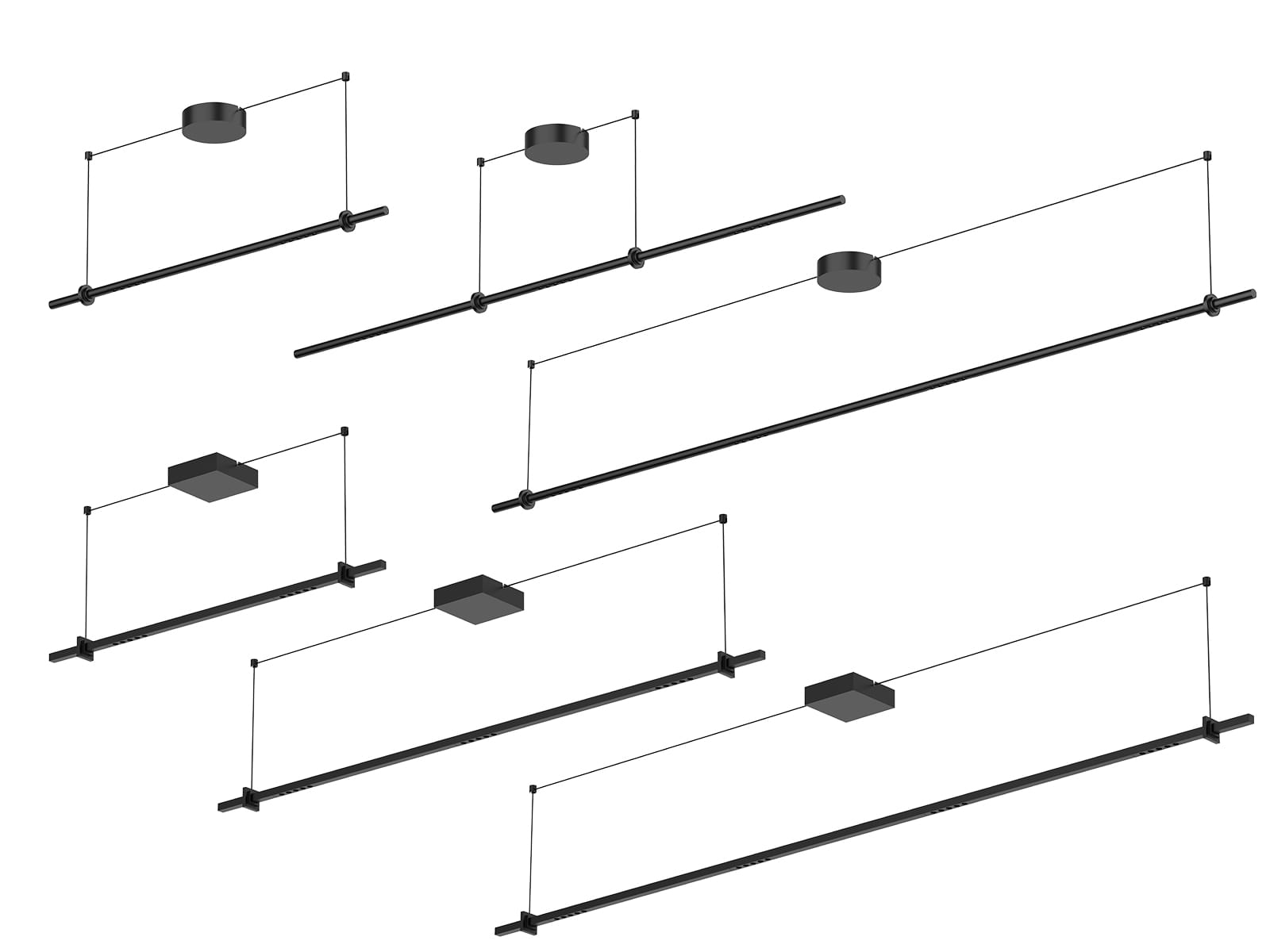

DB195 LED Batten Light
This chandelier is an exquisitely slender fixture that is seamlessly integrated into delicate environments. It incorporates an internal lens and reflector to reach anti-glare UGR<19, ensuring a harmonious illumination effect. The overall lamp body is crafted from high-quality aluminum AL6063 for great thermal management. Furthermore, it adopts an internal flicker-free driver and supports O-10V dim and DALl dim.
- Exquisite design with slender lamp body
- Anti-glare design, UGR<19
- Installation way: Suspended with ceiling plate
- Finished color: White RAL9016, Black RAL9005
- Sliding DC wiring holder
- Internal flicker free driver
- Dimming way: O-10V, DAL
Application: It is designed for indoor applications in dining room, kitchen island, restaurant, hotel, cafe, bar, museum, etc.
| CODE | ART-DB195A-840- 10W | ART-DB195A-1370- 15W | ART-DB195A-1900- 20W | ART-DB195B-840- 10W | ART-DB195B-1370- 15W | ART-DB195B-1900- 20W |
|---|---|---|---|---|---|---|
| Dimension(mm) | L840*Ø18 | L1370*Ø18 | L1900*Ø18 | L840*W16*H16 | L1370*W16*H16 | L1900*W16*H16 |
| Cutout (mm) | - | |||||
| Watt(W) | 10W | 15W | 20W | 10W | 15W | 20W |
| Input Voltage | AC 220-240V | |||||
| Light Source | SMD | |||||
| CCT(K) | 1-CCT: 3000K/4000K | |||||
| DIM 1-CCT Luminous Flux (lm) ±5% CRI80 | 1050-1250 | 1600-1800 | 2050-2400 | 1100-1300 | 1650-1850 | 2150-2450 |
| Remark: The lumen value is based on white lamp, and the lumen value of black light fixtures will decrease by around 6%. | ||||||
| Beam Angle (°) | 36° | |||||
| UGR | ＜ 19 | |||||
| Dimming Option | DALI/ 0-10V | |||||
| N.W/PC(KG) | 0.75 | 0.94 | 1.08 | 0.89 | 1.1 | 1.26 |
| G.W/CTN(KG) | 7.82 | 9.82 | 11.76 | 8.66 | 10.78 | 12.84 |
| Qty/CTN(PCS) | 6 | 6 | 6 | 6 | 6 | 6 |
| Carton Size(mm) | 1020*380*170 | 1550*380*170 | 2080*380*165 | 1020*380*170 | 1550*380*170 | 2080*380*165 |
