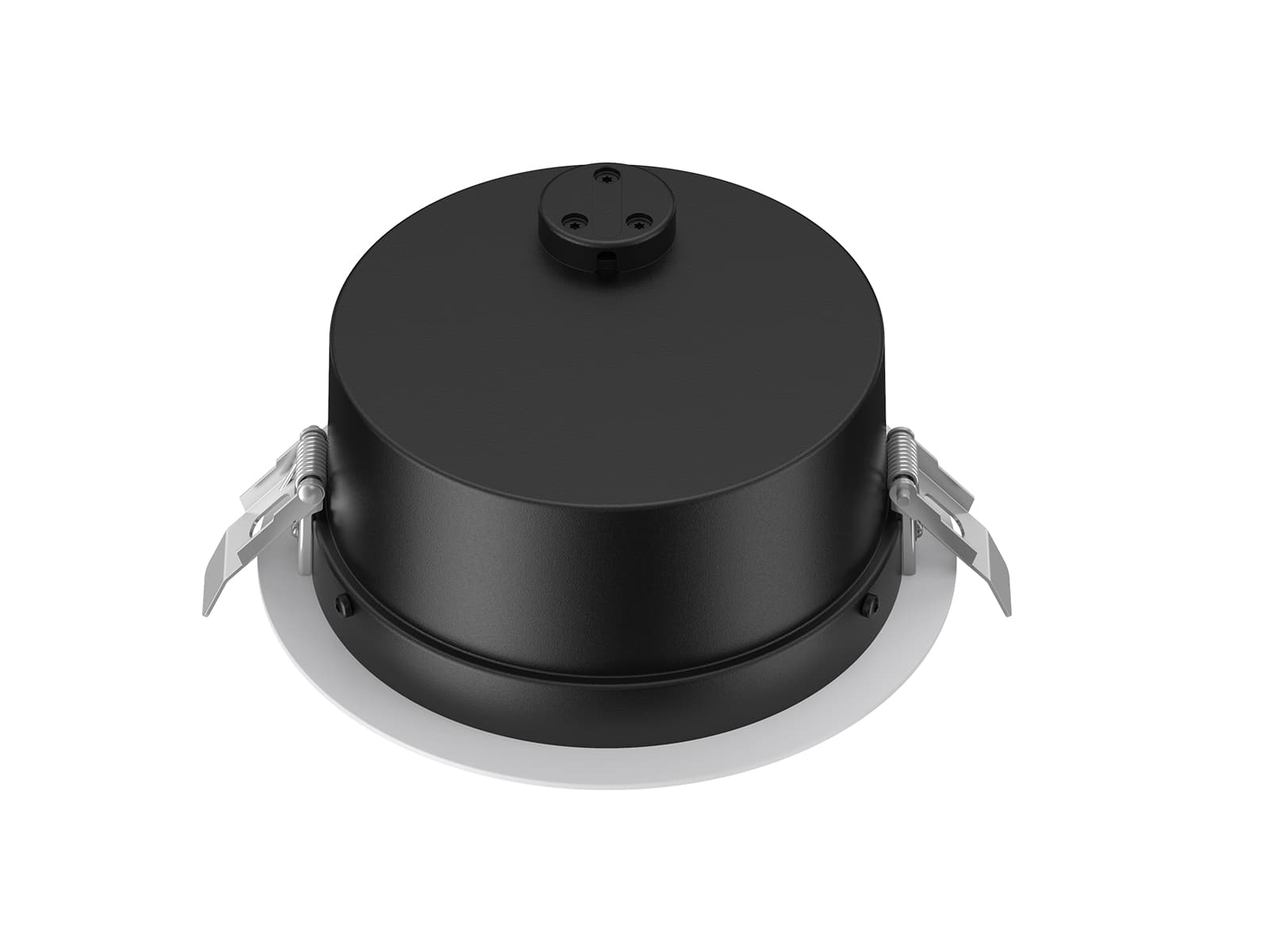

CL432 LED Downlight
This collection is designed to offer customers a distinctive lighting solution, focusing on recessed round adjustable spotlights, incorporating a fabric cover that creates an extensible and visually captivating effect. The use of an extensible fabric cover that adapts to the movement of the downlight, creates ripples and an interesting decorative effect. The purpose is to provide a downlight that not only illuminates the space but also serves as a visually appealing design element. The collection aims to enhance architectural spaces and themed interior spaces, adding a unique and innovative touch to the overall ambiance. The downlight module is designed to rotate 360 degrees and tilt up to 35 degrees, providing flexibility in lighting direction.
- Utilize an extensible fabric cover that creates ripples and interesting decorative effects as the downlight moves

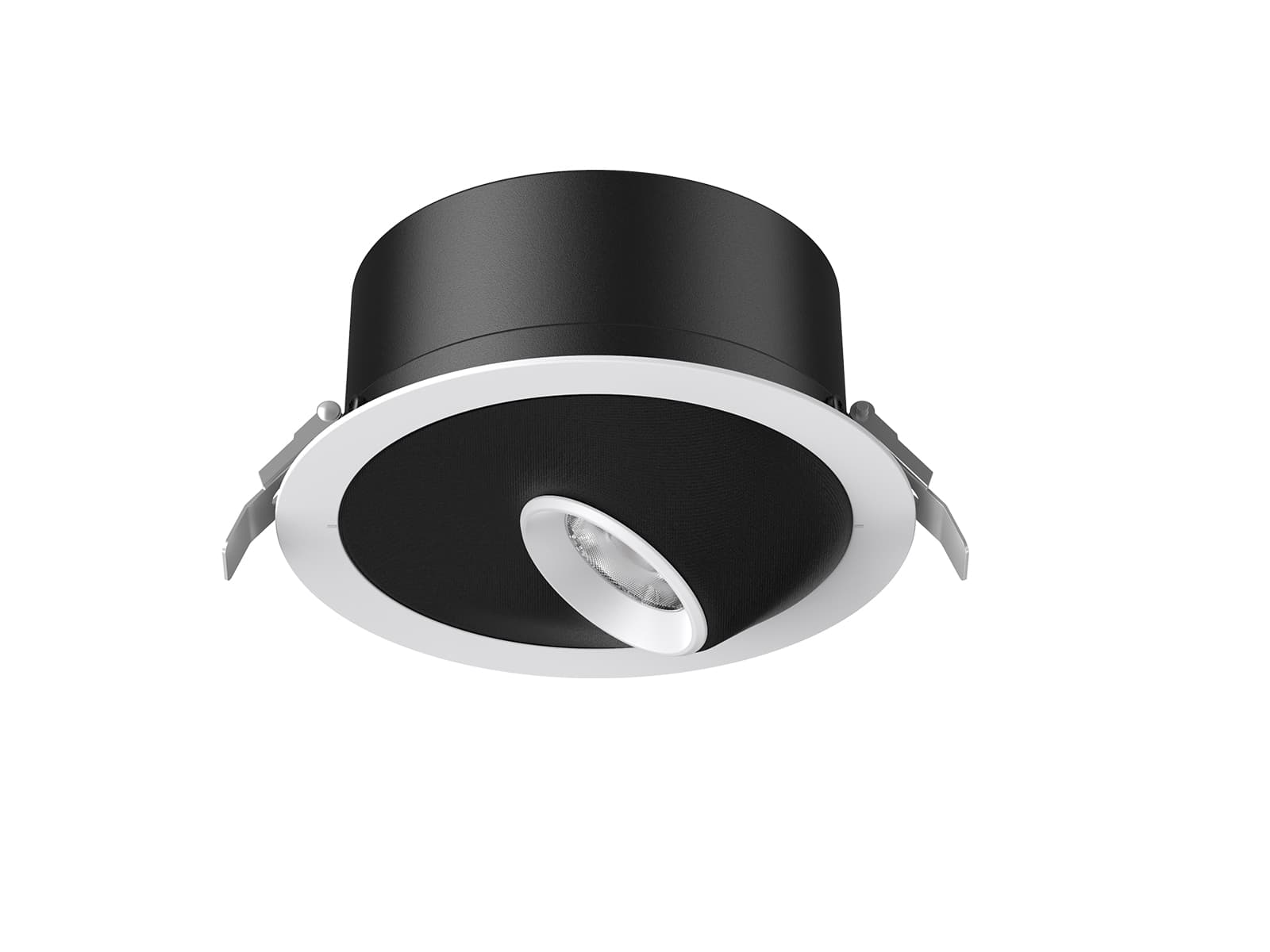

- The downlight module is 350 rotate-able and tilt up to 35 degrees, providing flexibility in lighting direction

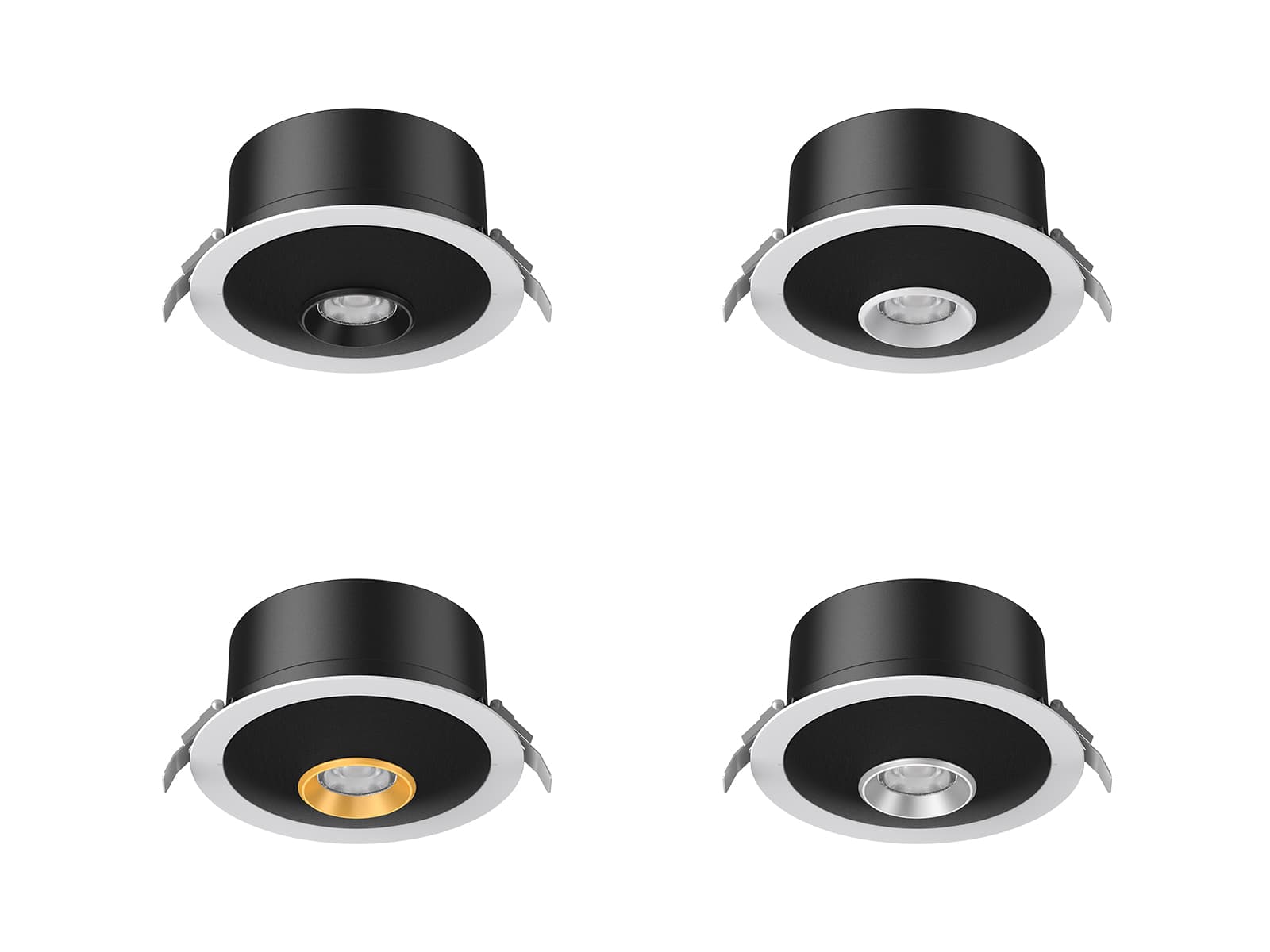

- The lens fixation ring can be customized with different colors (matt black, matt white, matt gold, and matt silver)
- 24°/36°/60° beam angle optional
- Branded LED chips with high color rendering index, CRI90
- High lumen efficacy 100lm/W
- Flicker-free built-out LED driver

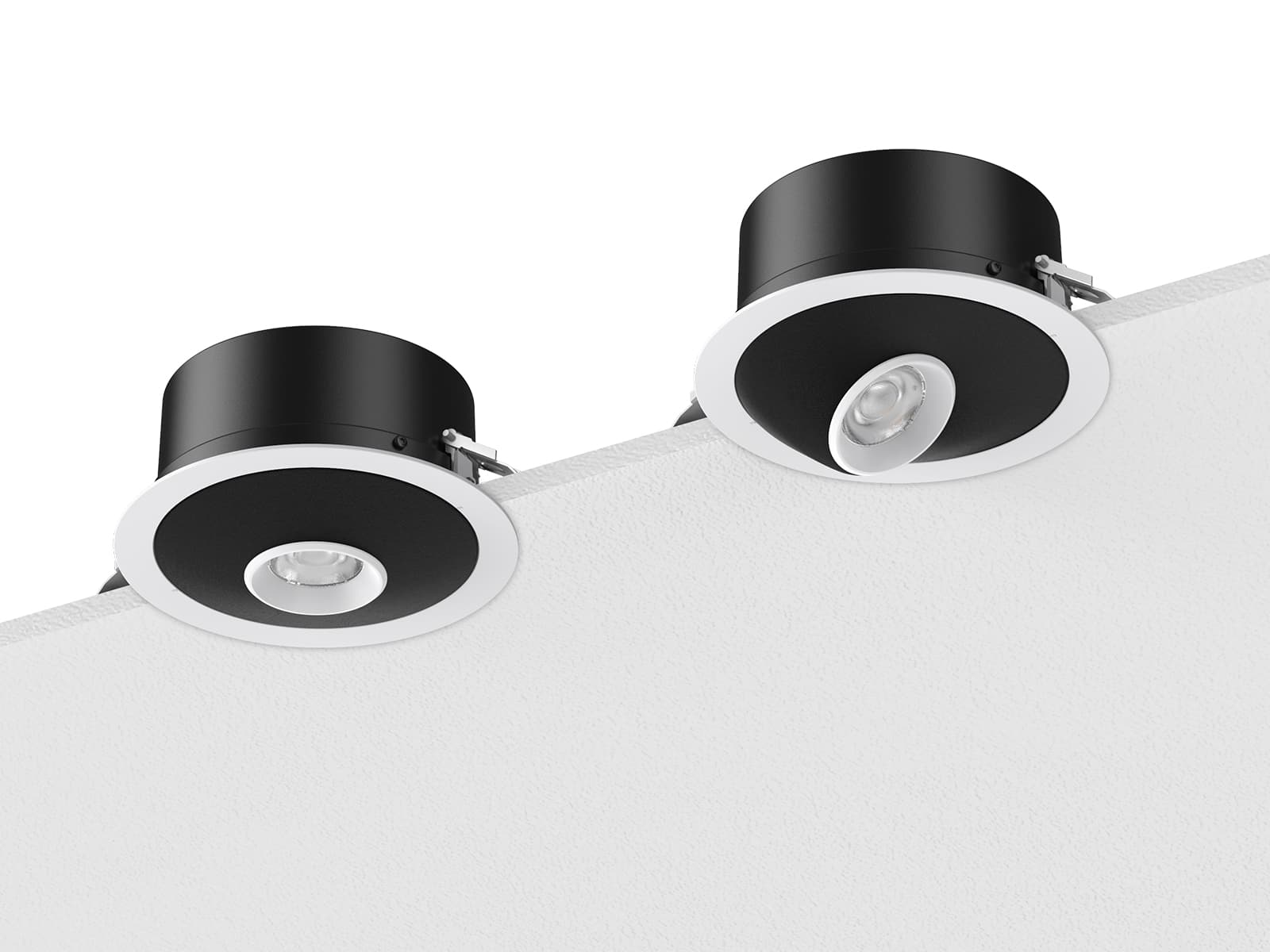

APPLICATIONS: It’s applicable in architectural spaces, corridors, offices, etc. It is also widely used in public places areas such as corridors, stairs, balconies, etc.
| CODE | ART-CL432-6-10W | |
|---|---|---|
| Dimension(mm) | Ø176*99 | |
| Cutout (mm) | 165-170 | |
| Watt(W) | 10W | |
| Input Voltage | AC220-240V | |
| LED Module Input | DC33-38V | |
| Light Source | COB | |
| CCT(K) | 3000K / 4000K | |
| Luminous Flux (lm) ±5% CRI90 | Non-DIM | 1130-1240 |
| DIM | 1130-1240 | |
| Beam Angle (°) | 24°/36°/60° | |
| UGR | - | |
| Dimming Option | Triac | |
| Product weight(Kg) | N.W/PC | 0.78 |
| G.W/PC | 0.98 | |
| Package weight(Kg) | N.W/CTN | 9.36 |
| G.W/CTN | 12.81 | |
| Qty/CTN (PCS) | 12 | |
| Carton Size(mm) | 450*430*445 | |
| 20GP(pcs) | 3900 | |
| 40HQ(pcs) | 7800 | |
