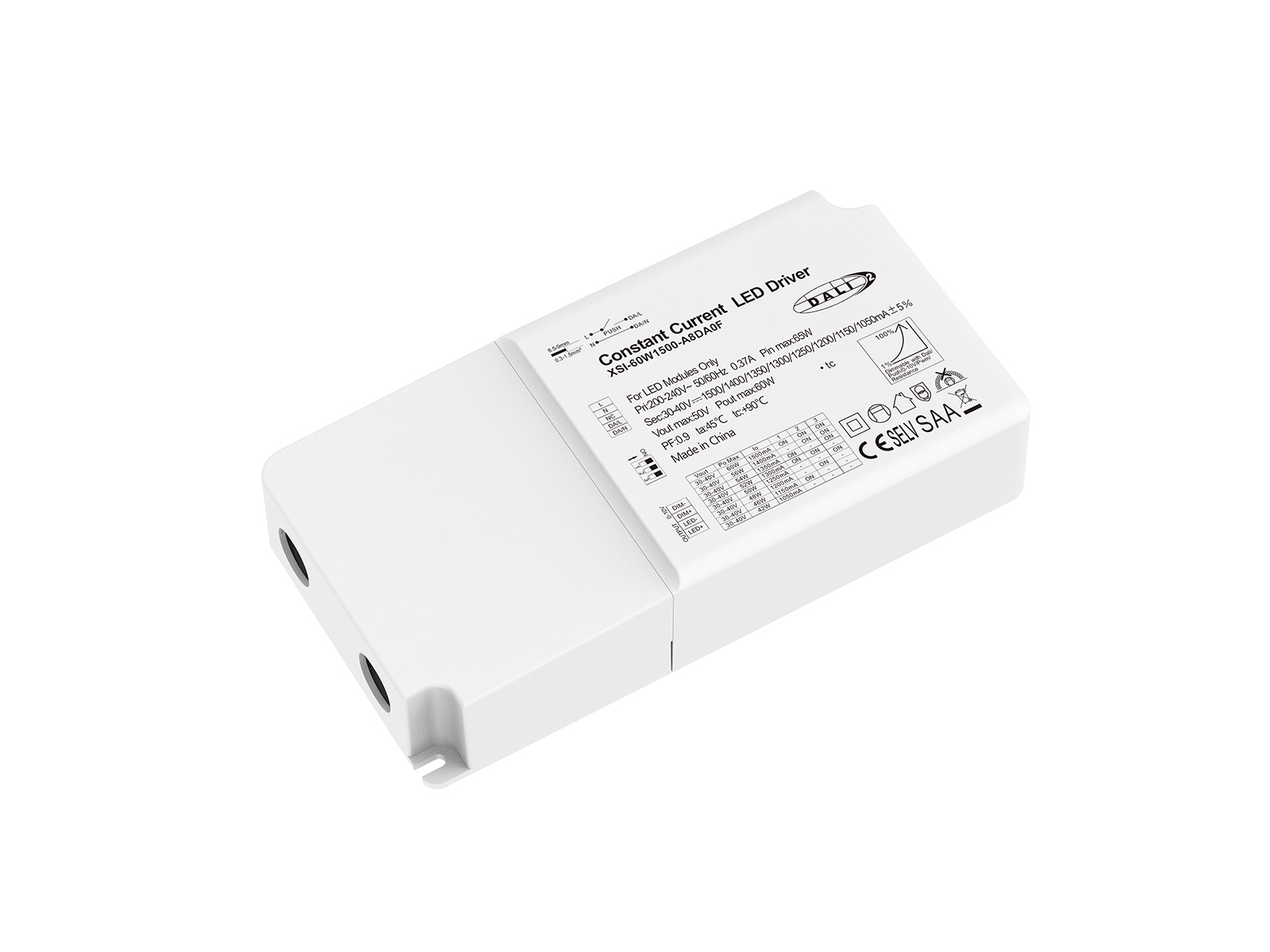

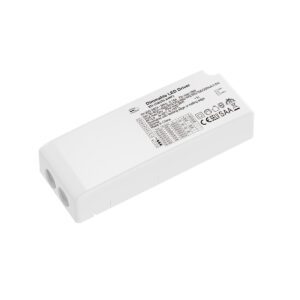

XSI-XXWXXX-AXDA0F Large Wiring Space Design
- Independent fixed output LED Driver
- Specific, optimized output current and voltage
- Output power dim, 4-60W
- Whole range are featured with flicker free performance

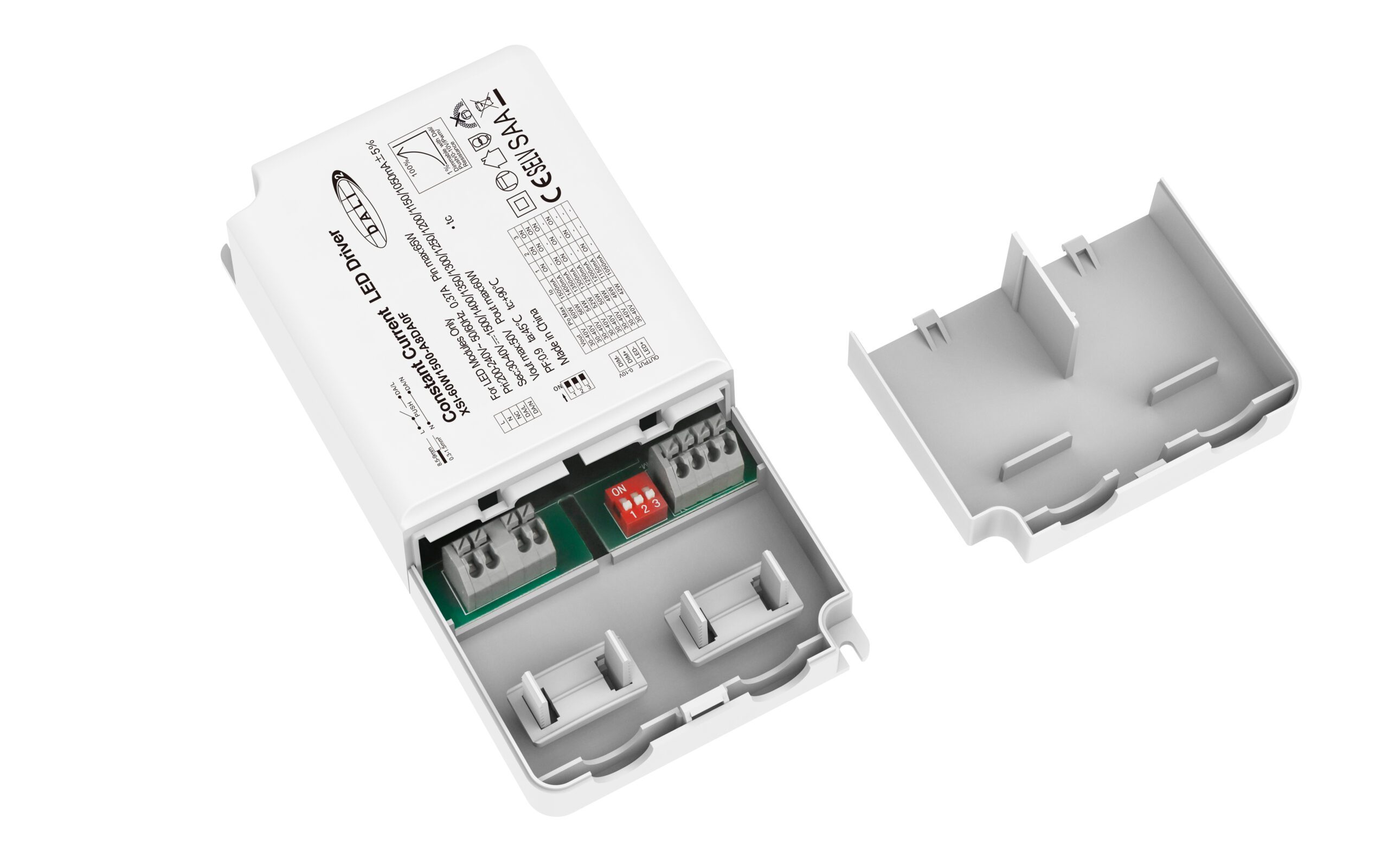

- Idea circuit design overcome luminarie flickering with voltage fluctuation.
- For luminaires of protection class I and protection class II
- Temperature protection as per EN / IEC61347
- Small, super compact dimensions
- Nominal life-time up to 50,000h

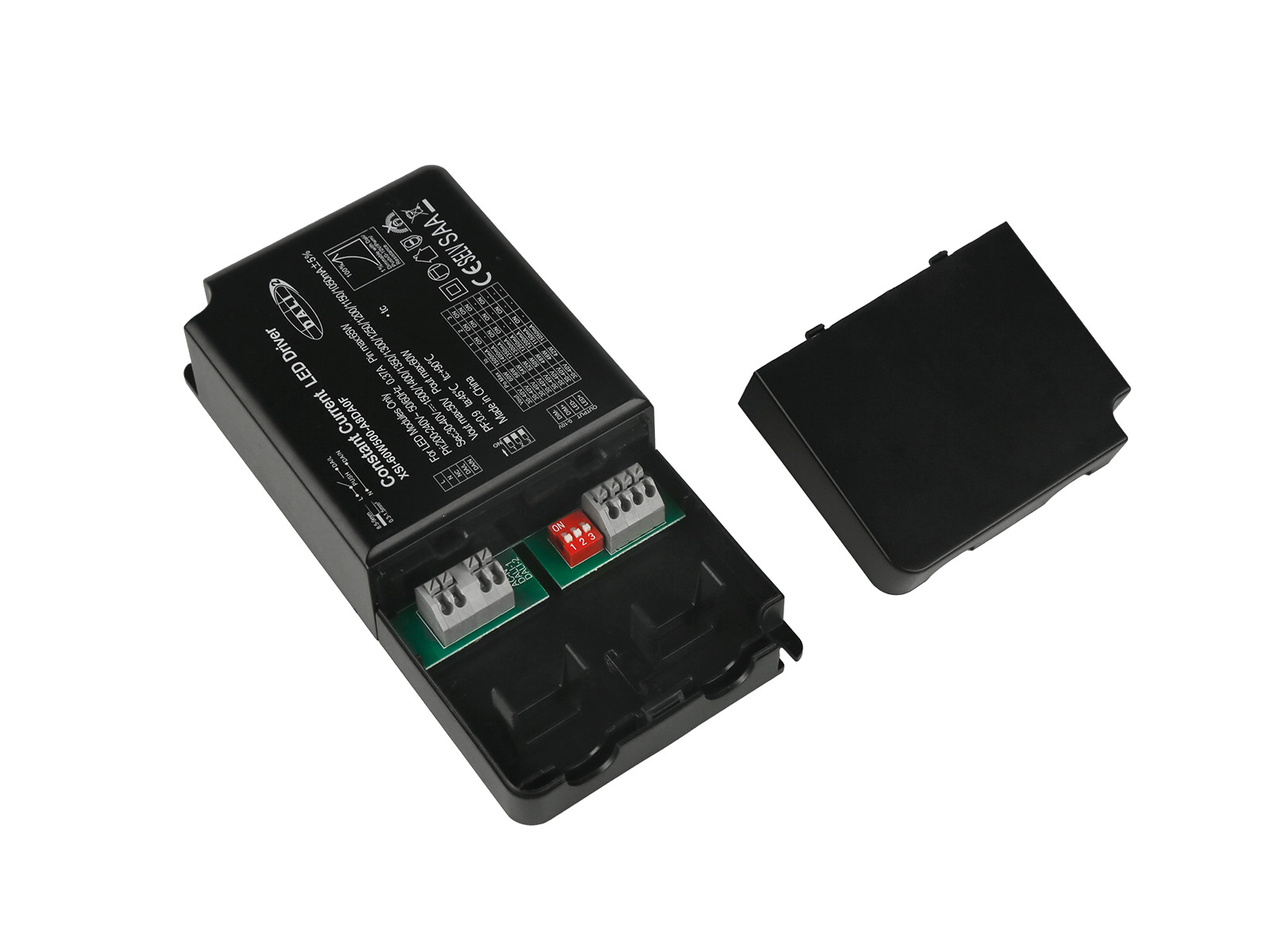

- DALI signal:16 bit Manchester Code Speed 1 % to 100 %
| Driver Datasheet (Dali-dimmable) | |||||
|---|---|---|---|---|---|
| Code | XSI-9W205-A4DA0F | XSI-22W550-A8DA0F | XSI-45W1050-A8DA0F | XSI-60W1500-A8DA0F | |
| Input | Input Power | 4-9W | 8-22W | 24-45W | 45-60W |
| Input Voltage | 180-265V | ||||
| Rated Input Voltage(V) | 200-240V | ||||
| Frequency | 50/60HZ | ||||
| Input Current | ≤0.05A | ≤0.14A | ≤0.28A | ≤0.37A | |
| Rated Input Current | ≤0.04A | ≤0.13A | ≤0.25A | ≤0.34A | |
| Power Factor (typ) | 0.9 | ||||
| Total Harmonic | <20% @230V | ||||
| Distortion(THD) | |||||
| Efficiency (typ) | ≥78% | ≥86% | ≥88% | ≥90% | |
| Inrush Current (Typ.) | 18.8A/34.8uS | 15.1A/113uS | 16A/214uS | 24.2A/326uS | |
| Max Circuit Breaker | Please refer to” Circuit breaker Specification” | ||||
| Leakage Current | <0.5mA/240V | ||||
| No Load Wattage | <0.5W @230V | ||||
| Output | Output Voltage Range | 30-40V | |||
| Rated Output Current | 100-205mA | 200-550mA | 600-1050mA | 1050-1500mA | |
| Line Regulation | ±5% | ||||
| Open Circuit Voltage (max) | 50V | ||||
| Setup time(note1) | <1S @230V | ||||
| Flickering Index(IEEEStd 1789) | 3%(NO RISK) | 6%(NO RISK) | 6%(NO RISK) | ||
| Protection | Short Circuit Protection | Constant current limiting, recovers automatically after fault condition is removed | |||
| Over Voltage Protection | Shut down o/p voltage | ||||
| Over Temperature Protection | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| Safety &EMC | Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, IEC/EN62384 independent,GB19510.14,GB19510.1 approved | |||
| Withstand Voltage | I/P-O/P:3.75KVac,<5mA 60S; I/P-FG:1.6KVac,<5mA 60S; O/P-FG:0.5KVac,<5mA 60S | ||||
| Isolation Resistance | I/P-O/P: 500VDC, ≥100M Ω | ||||
| Surge | IEC/EN61000-4-5(L-N:0.5KV, ) | IEC/EN61000-4-5(L-N:1KV, ) | |||
| EMC Emission | IEC/EN55015, IEC/EN61000-3-2 | ||||
| EMC Immunity | IEC/EN61000-4-2,3,4,5,6,8,11; IEC/EN61547 | ||||
| Other | Dimension(L*W*H) | 131.0*50.0*26.0mm | 143.0*58.0*30.0mm | 144.0*80.0*32.0mm | 156.0*80.0*32.0mm |
| Weight | 0.09Kg | 0.13Kg | 0.20Kg | 0.25Kg | |
