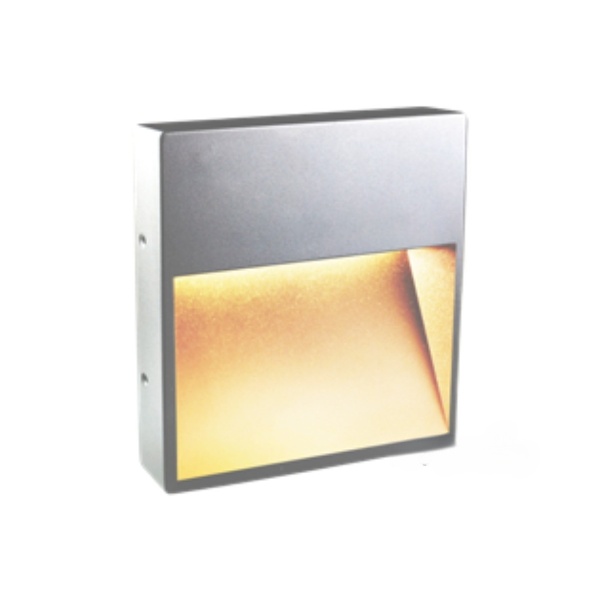

WALL MOUNTED STEP LIGHT
Power:9W
LED: OSRAM/CREE
CRI: 80 / 90
SDCM: 3 / 5
CCT: 2700K / 3000K / 4000K / 6000K
Control: Remote / On-Off
Input Voltage:DC24V/AC240V
Dimming: DALI / DMX512 / 0-10V / 1-10V / Triac
Beam Angle: 120°
Material: Die-casting powder coated aluminum
Waterproof: IP65
Certification: CE EMC LVD, ROHS, IP65 etc.
Warranty: 3-5 Years
Material Specifications
| 0MODEL NO. | POWER | LED COLOR | INPUT VOLT. | LENS DEGREE | SIZE | LUMEN |
| BL-LSL108S | 9W | 2700-6500K | 24V DC
240V/120V AC |
120° | 21*215*35mm | 550lm |
LED:OSRAM/CREE
Housing: 12#Die-casting powder coated aluminum.
LED Driver:Constant voltage input.Constant current output.
Gasket:Tooling shaped double silicone seal.
Dimmable: Triac/Dali/1-10V/PWM/DMX512.
Power Cable:H05RN–F 2X1.0mm2L=0.5M(low voltage).H05RN-F 3×0.75mm2L =0.5M(high voltage)
Working Temperature:-20 to 40°C.
